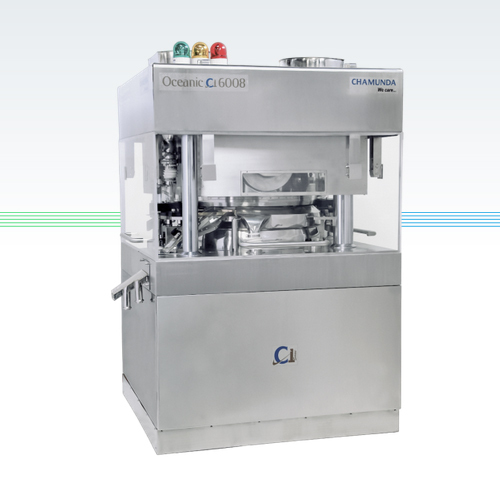

Multi Layer Double Rotary Tablet Press Machine
Product Details:
X
Product Description
Features
- Designed to produce tablets up to 3 layers
- Central Drive system
- Separate drive section from tablet compression zone
- Three piece turret with SS 316 die plate
- Three point mounted force feeder with individual motorized drive
- Main & Pre compression force through Hydraulic power pack
- Tablet compression zone with transparent enclosures and safety interlocking system
- Indicator lamp for proper positioning of weight adjustment bracket
- Hydraulic power pack system for safety of machine and tooling against overload condition
- Removable weight adjustment system for faster changeover of lower punches & dies
- Main tablet parameter controls at front for operational ease
- ACVFD for main & force feeder motors
- Ejection system for removal of individual layers for physical inspection or weight checking purpose"
Optional Features
- Turret with Electro-less Nickel Plating
- PLC Touch Control System
| MODELS | CPMMLP-31 | CPMMLP-37 |
|---|---|---|
| No. of Stations | 31 | 37 |
| Tooling | D | B |
| Max Output (Tab/hr)* | 59,520 | 71,040 |
| Max. Pressure | 10 Ton | 6.5 Ton |
| Pre Compression | 1 Ton | 1 Ton |
| Upper Punch Penetration | 3 to 6 mm | 3 to 6 mm |
| Max Tablet Dia. | 25 mm | 16 mm |
| Depth of Fill available for | 415V, 3, AC, 50HZ | |
| 1st layer | 1 to 7 mm | 1 to 7 mm |
| 2nd layer | 1 to 11 mm | 1 to 11 mm |
| 3rd layer | 1 to 15 mm | 1 to 15 mm |
| Main Motor | 3 HP | |
| Force Feeder | 0.25 HP | |
| Electrical supply** | 4.25 HP, 3, AC | |
