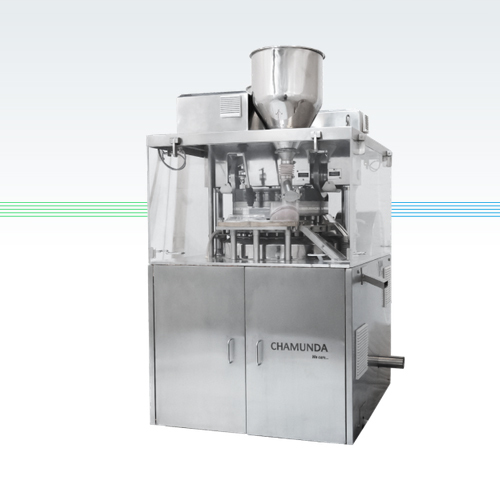

Send InquiryEco Model Elan Press Double Rotary Tablet Press Machine
About Eco Model Elan Press Double Rotary Tablet Press Machine
Features
- High Speed Turret up to 100 RPM
- Digital indication of pre and main compression force through load cells
- Motorized tablet thickness (pre & main)
- Motorized upper punch penetration (pre & main)
- Motorized tablet weight adjustment
- PLC with 10" color HMI
- Initial Rejection
- Direct Drive with ACVFD
- Zero Clearance Force Feeder with ACVFD
- Upper Punch Penetration
- Swing Type Pressure Roll (Main & Pre)
- Auto Lubrication for centralized lubrication
- Separate operating cum control panel
- Pressure Loading and overload release through advanced Hydro-Pneumatic device
- Three Piece Turret with SS 316 Die Plate
- 21 CFR 11 compliance"
Optional Features
- Comprehensive CFC based Automation system through SCADA
- 21 CFR 11 compliance
| MODELS | ELAN 51 | ELAN 61 | ELAN 75 | ELAN 81 |
|---|---|---|---|---|
| No. of Stations | 51 | 61 | 75 | 81 |
| Tooling | D | B | BB | BB |
| Max. Main compression load (Ton) | 10 | 6.5 | 6.5 | 6.5 |
| Max. Pre Compression Load (Ton) | 10 | 6.5 | 6.5 | 6.5 |
| Max. Tablet Dia. (mm) | 25 | 16 | 11 | 11 |
| Depth of Fill (mm) | 20 | 17 | 17 | 17 |
| Upper Punch Penetration | 3 to 6mm | |||
| Max Output (Tablets/hr)* | 3,67,200 | 4,39,200 | 5,40,000 | 5,83,200 |
| Main Motor (kW/HP) | 15/20 | |||
| Feeder Motor (2 Nos.) (kW/HP) | 0.75/1 | |||
| Total Power (kW/HP) | 15.75/21 | |||
| Power Supply | 415V, 3Ø AC, 50 HZ | |||
| Compressed Air Supply | 3 CFM @ 6 bar | |||
| Charging Height (mm) | 1995 mm (± 10 mm) | |||
| Discharging Height (mm) | 890 mm (± 10 mm) | |||
| Overall Dimension (L x W x H) (mm) | 1800 mm x 1620 mm x 2070 mm (± 10 mm) without open guard | |||
| 2700 mm x 2800 mm x 2220 mm (± 10 mm) with open guard | ||||
