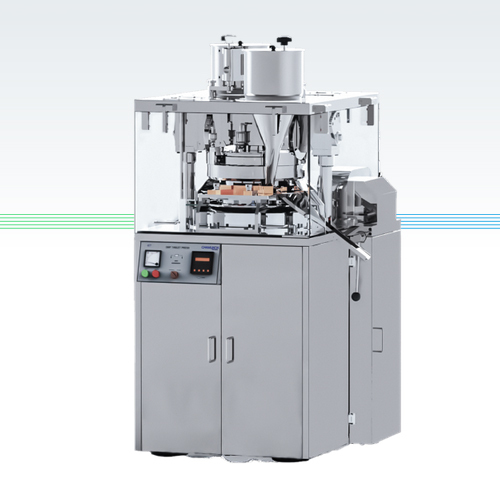

Send InquiryCPEB4 Front Control Double Rotary Tablet Press Machine
About CPEB4 Front Control Double Rotary Tablet Press Machine
Features
- Front Control for Tablet Parameters
- Three Piece Turret with SS 316 Die Plate
- Upper Punch Penetration
- Main Motor with ACVFD and Electro-Magnetic Clutch
- Auto Lubrication Arrangement for centralized lubrication"
Optional Features
- PLC System
- Force Feeder with AC Drive
- Bi-Layer attachment
| CPEB4-FC MODELS | 27 D | 35 B | 45 BB |
|---|---|---|---|
| No. of Stations | 27 | 35 | 45 |
| Tooling | D | B | BB |
| Max. Pressure (Ton) | 10 | 6.5** | 6.5** |
| Turret Speed (RPM) | 17 to 42 | 17 to 42 | 17 to 42 |
| Max. Tablet Dia. (mm) | 25 | 16 | 11 |
| Max. Output (Tab/hr)* | 136,080 | 176,400 | 226,800 |
| Depth of Fill (mm) | 20 | 17 | 17 |
| Main Motor | 5 HP, 1440 RPM | 5 HP, 1440 RPM | 5 HP, 1440 RPM |
| Upper Punch Penetration(mm) | 3 to 6 | 3 to 6 | 3 to 6 |
| Power Supply | 415V, 3, 50Hz | 415V, 3, 50Hz | 415V, 3, 50Hz |
