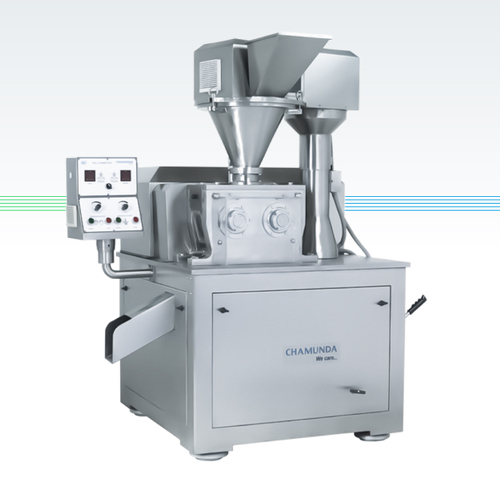

Roll Compactor
Product Details:
X
Product Description
Features
- Mirror finished Compacting Rolls with Hard Chrome plated
- Pre-compaction chamber guides the product to rolls without any slippage or leakage
- Electrical interlocking between main roll drive and feed screw drive
- Feed Screw Conical Type - driven through ACVFD "
Optional Features
- Water Jacketing arrangement
- Hydraulic Power Pack for Roll Pressure & Feed Screw Lifting
- Roll - driven through ACVFD
- Flame Proof construction
- Roll Surface options
| CPMRC MODELS | 200/50 | 200/75 | 200/100 | 200/150 |
|---|---|---|---|---|
| Max. Output (kg/hr)* | 20 to 60 | 30 to 100 | 100 to 250 | 100 to 350 |
| Roll Speed (RPM) | 6 to 25 | 6 to 25 | 6 to 22 | 6 to 22 |
| Feed Screw Speed | 10 to 60 RPM | 10 to 60 RPM | 16 to 50 RPM | 16 to 50 RPM |
| Roll Drive Motor | 5 HP | 5 HP | 7.5 HP | 10 HP |
| Feed Screw Drive motor | 2 HP | 2 HP | 3 HP | 3 HP |
| Electrical Supply ** | 7 HP, 3Ø, AC | 7 HP, 3Ø, AC | 10.5 HP, 3Ø, AC | 13 HP, 3Ø, AC |
