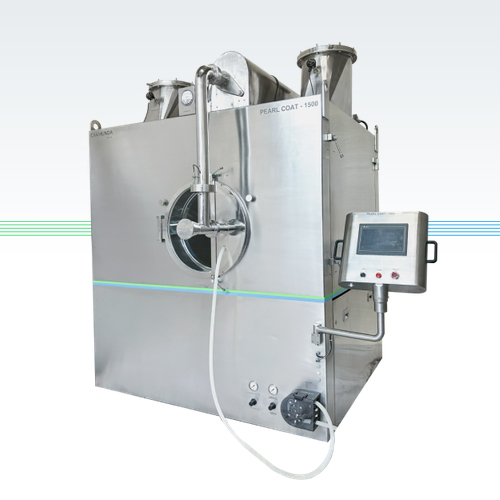

Send InquiryPearl Coat CI Automatic Coating System
About Pearl Coat CI Automatic Coating System
Features
- In compliance with cGMP guidelines
- Modular Design
- Accurate batch consistency with high production efficiency & effective spraying with special design anti bearding type guns
- Accurate temperature control within ± 2°C
- In-built WIP system
- Quick accessibility for maintenance & cleaning
- Quick-release of Plenums for cleaning of Pan and Plenums
- Effective sealing of doors
- PLC + HMI based controls system"
Optional Features
- Sugar Coating System
- Interchangeable Pans up to ci 900 model
- Flameproof Construction
- 21 CFR PART-11 compliance
| Ci MODELS | 450 | 900 | 1200 | 1500 | 1650 |
|---|---|---|---|---|---|
| Working Capacity - kg* | 5-7 | 45-70 | 100-150 | 200-350 | 400-500 |
| Pan Diameter - mm | 450 | 915 | 1220 | 600 | 600 |
| Pan mouth Diameter - mm | 200 | 300 | 480 | 600 | 600 |
| Pan Speed - RPM | 2-18 | 2-15 | 2-15 | 2-15 | 2-15 |
| Main Drive Motor HP | 1 | 1.5 | 3 | 5 | 7.5 |
| Inlet/Outlet Fan Air Volume (CFM ± 10%) | 590 | 900 | 1750 | 3500 | 5000 |
| Electric Heater - kW | 22 | 34 | N.A. | N.A. | N.A. |
| Compressed Air Pressure (bar) | 6 | ||||
| Electrical Supply** | 415V ± 10%, AC, 3Ø, 50 HZ | ||||
FAQs of Pearl Coat CI Automatic Coating System:
Q: What is the warranty for the Pearl Coat CI Automatic Coating System?
A: The warranty for this product is 1 year.Q: Is the Pearl Coat CI Automatic Coating System computerized?
A: No, this system is not computerized.Q: What is the control mode of the Pearl Coat CI Automatic Coating System?
A: The control mode is semi-automatic.Q: What is the voltage requirement for the Pearl Coat CI Automatic Coating System?
A: The system operates at 230 volts.Q: What material is the Pearl Coat CI Automatic Coating System made of?
A: This system is made of mild steel.
