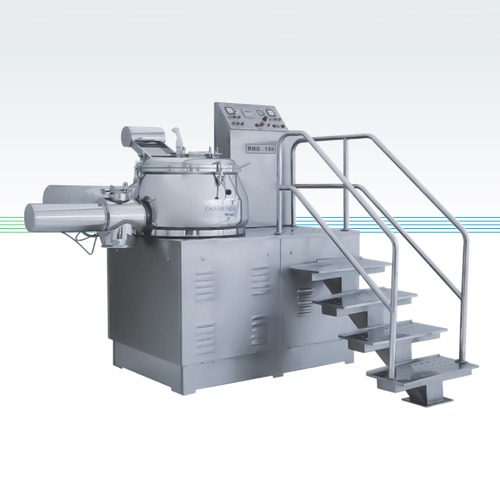

High Shear Mixer Granulator
Product Details:
X
Product Description
Features
- Mixing of substances uniformly and homogeneously with special design Mixer & Chopper blades
- Electro-Pneumatic Operated Discharge
- Effective sealing
- Continuous air purging through drive shaft to avoid product spilling
- Easy to clean machine
- Fully Automatic Operation through Programmable"
Optional Features
- PLC System
- Jacketed type Pot
- Davit Arm type Lifting & Swiveling
- Flame Proof Construction
- in-line Cone-Mill at Discharge
| CPMRMG MODELS | 25 | 50 | 100 | 150 | 300 | 400 | 600 | 800 | 1000 | 1200 |
|---|---|---|---|---|---|---|---|---|---|---|
| Gross Volume Ltr. | 25 | 50 | 100 | 150 | 300 | 400 | 600 | 800 | 1000 | 1200 |
| Working Volume Ltr. | 20 | 40 | 80 | 120 | 240 | 320 | 480 | 640 | 800 | 960 |
| Mixer Motor (HP) | 03/05 | 5/7.5 | 7.5/10 | 10/15 | 22.5/30 | 30/40 | 40/50 | 50/60 | 60/75 | 75/100 |
| Chopper Motor (HP) | 1.5/2 | 02/03 | 02/03 | 03/05 | 03/05 | 5/7.5 | 7.5/10 | 10/15 | 15/25 | 25/30 |
| Compressed Air | - | - | - | - | - | - | - | - | - | - |
| Pressure (bar) | - | - | - | - | - | - | - | - | - | - |
| Total Power (HP) | 7 | 10.5 | 13 | 20 | 35 | 47.5 | 60 | 75 | 100 | 130 |
| Electrical Supply** | 415V ± 10%, AC, 3Ø, 50 HZ | |||||||||
