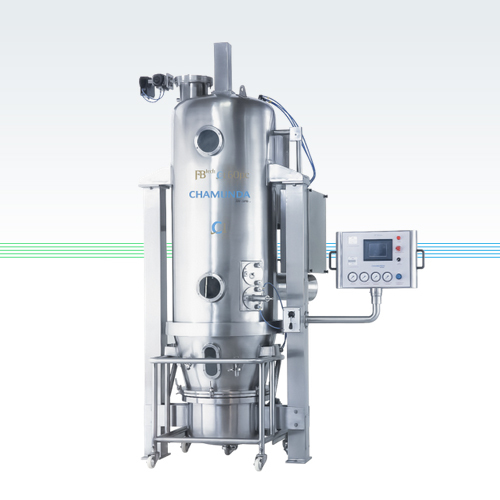

FB tech Ci Fluid Bed Granulator
Product Details:
X
Product Description
Features
- Single Pot technology for mixing, granulating, drying, blending
- Yield nearly approaches 99% with negligible handling losses due to single pot
- Quick Dismantling of Dutch Sieve & Perforated Sheet at the Product container
- Operation Panel with 10" touch screen color HMI & PLC
- Accurate temperature control within ± 2°C"
Optional Features
- Flameproof Construction
- Bottom Spraying system
- Conidur Mesh (For Helical Fluidization)
- WIP System
| Ci MODELS | 15 | 30 | 60 | 120 | 200 | 300 | 400 | 500 | 600 |
|---|---|---|---|---|---|---|---|---|---|
| Container Gross Volume Ltr. | 46 | 71 | 142 | 280 | 475 | 650 | 870 | 142 | 1350 |
| Max. Batch Capacity (0.5 bd) kg* | 0- 15 | 20- 30 | 40 - 60 | 80 - 120 | 160- 200 | 200- 300 | 300- 400 | 400- 500 | 500 - 600 |
| Blower Motor HP** | 7.5 | 7.5 | 12.5 | 25 | 30 | 40 | 50 | 60 | 75 |
| Air Flow (CFM) + 10% | 530 | 765 | 1060 | 2150 | 2600 | 3500 | 3900 | 4500 | 5500 |
| Steam Pressure (kg/cm²) | 3.5 | ||||||||
| Steam Consumption (kg/hr) | 36 | 54 | 81 | 144 | 198 | 260 | 292 | 323 | 384 |
| Electric Heater (kW) | 18 | 22 | 36 | 60 | N.A. | N.A. | N.A. | N.A. | N.A. |
| Compressed Air Pressure (bar) | 8 | ||||||||
| Drying Temp (°C) | 35-80 | ||||||||
| Electrical Supply** | 415V ± 10%, AC, 3Ø, 50 HZ | ||||||||
