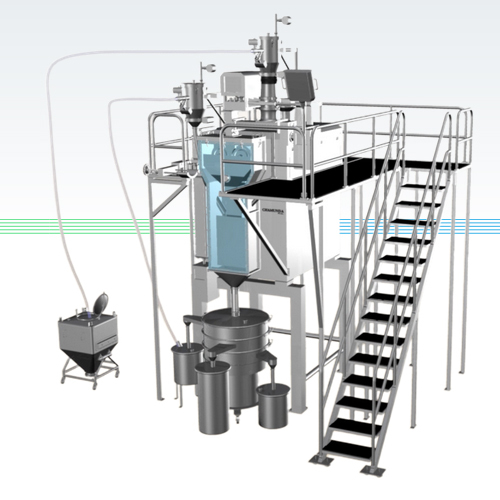

Cantilever Model Roll Compactor With Structure

Name: Cantilever Model Roll Compactor With Structure
Brand: Chamunda Pharma Machinery Pvt. Ltd.

Get a Price/Quote

About Cantilever Model Roll Compactor With Structure

The Cantilever Model Roll Compactor With Structure is designed with a voltage of 230 Volt, featuring a semi-automatic control mode. Made of durable mild steel material, this roll compactor comes with a 1-year warranty and is computerized for easy operation. Its cantilever design allows for easy access and maintenance, making it ideal for compacting materials with ease and efficiency.

Features

Cantilever roll design
Feed Screw and roll speed through ACVFD
Technical and production Area Separate
Horizontal & Vertical Screw feeding arrangement
Structural platform surrounding the machine with stair case
Inline milling or OG arrangement
PLC with HMI"

Optional Features

Water Jacketed
Comprehensive Automation including roll gap measurement & control
21 CFR Part 11 compliance
Vacuum Powder Transfer System
Flame Proof Construction
Roll Surface options

CPMRC-C MODELS	200/50 C	200/75 C	200/100 C	200/150 C
Working Cap. (Output) *	20 - 60 Kg/hr	30 - 100 Kg/hr	100 - 250 Kg/hr	100-350 Kg/hr
Roll Size (mm)	Ø 200 X 50 W	Ø 200 X 75 W	Ø 200 X 100 W	Ø 200 X 150 W
Roll Speed (ACVFD)	6 to 25 RPM	6 to 25 RPM	6 to 22 RPM	6 to 22 RPM
Feed Screw Speed (ACVFD)	10 to 60 RPM	10 to 60 RPM	16 to 50 RPM	16 to 50 RPM
Roll Force Max.	12 Tons	12 Tons	22 Tons	22 Tons
Roll Drive Motor (HP)	7.5	7.5	7.5	10
Feed Screw Drive Motor	2	2	3	3
Electrical Supply **	11 HP, 3Ø, AC	11 HP, 3Ø, AC	12.5 HP, 3Ø, AC	15 HP, 3Ø, AC
