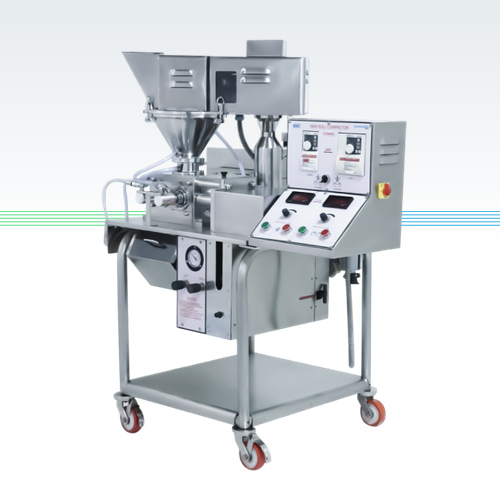

Send InquiryCantilever Mini Roll Compactor
Cantilever Mini Roll Compactor Specification
- Usage & Applications
- pharma
- Material
- stainlesssteel
- Capacity
- 2 to 5 kg / hr. Kg/hr
- Control Mode
- Semi-Automatic
- Voltage
- 2.5 HP,1 Phi,A.C. Horsepower (HP)
- Color
- SILVER
Cantilever Mini Roll Compactor Trade Information
- Minimum Order Quantity
- 1 Piece
- FOB Port
- AHMEDABAD
- Payment Terms
- Cash Advance (CA), Cash in Advance (CID)
- Sample Policy
- Contact us for information regarding our sample policy
- Main Export Market(s)
- Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
- Main Domestic Market
- All India
- Certifications
- iso
About Cantilever Mini Roll Compactor
Features
- Cantilever Roll Design
- Inline Roll Compactor with Cake Crusher & 2 Stage granulator
- Water Jacketed
- Design to obtain dust free operation
- Roll adjustable through hydraulic power pack
- Rolls driven through ACVFD
- Vertical feed screw with de-aeration system to avoid air trapping
- Horizontal screw, Vertical screw, Coarse and Fine Granulator through servo drive
- Hopper with Motorized Stirrer
- WIP provision
- Grater Screen for Fine & Coarse Granulator
- The percentage of fine particles obtained in the Cake crusher is much less than any other mill. (Approx 5%)
- PLC with 10 HMI
- Isolator compatible for OEL 4 and 5 products
Optional Features
- Comprehensive Automation including roll gap measurement & control
- Flame Proof Construction
- Roll Surface options
- 21 CFR Part 11 compliance
| MODELS | CPMMRCCG 100/25 C1 |
|---|---|
| Working Capacity | 2 To 5 Kg/hr |
| Roll Size | 100 X 25 W |
| Roll Speed | 3 To 29 RPM |
| Feed Screw Speed (Horizontal) | 60 RPM |
| Feed Screw Speed (Vertical) | 200 RPM |
| Roll Force | 5 Ton |
| Electrical supply | 5.5 HP, 1O, AC |
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Laboratory And Pilot Scale Equipment Category

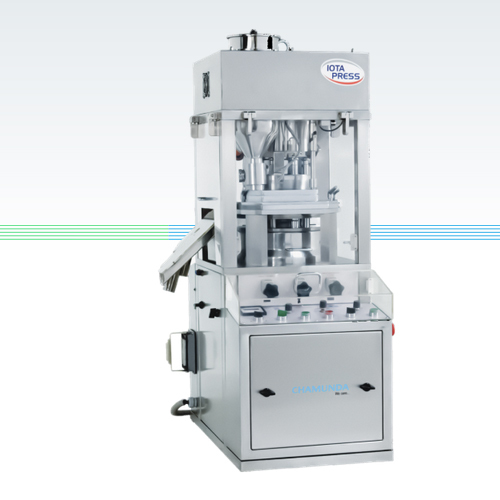

IOTA Press Single Sided GMP Rotary Tablet Machine
Price 1450000 INR / Piece
Minimum Order Quantity : 1 Piece
Type : Pharmaceutical Packaging Machine

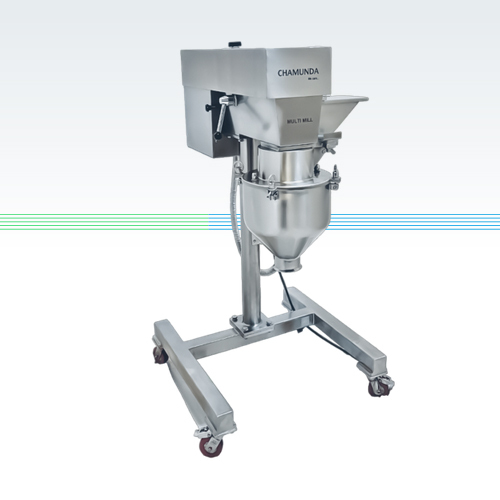

Mini Communiting Mill
