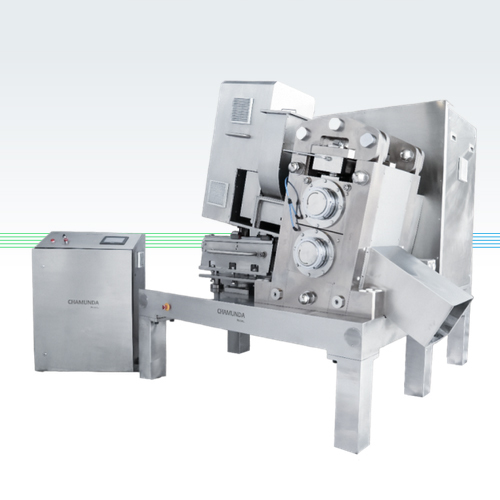

300-330 Roll Compactor
Product Details:
X
Product Description
Features
- Horizontal Feeding arrangement with de Aeration system
- Screw feeding system for prapotionate material feeding
- Roll force upto 60 Tons By 2 Cylinder
- Designed for dust free operation
- Compacting roll are made of SS410 with Hard Chrome plated
- Hydraulic Power Pack for Roll Pressure
- Roll and Feed Screws driven through ACVFD
- Separate operating cum control panel
- Powder Level Sensor"
Optional Features
- PLC With HMI
- 21 CFR PART-11 compliance
- Flame Proof construction
- Roll Surface options
| MODELS | CPMRC - 300/330 (Hyd.) |
|---|---|
| Working Capacity* | 100 to 1000 kg/hr. |
| Roll Speed | 6 To 22 RPM (Variable through ACVFD) |
| Feed Screw Speed | 10 To 90 RPM (Variable through ACVFD) |
| Roll Motor (kW/Hp) | 22.5/30 |
| Feed Screw Motor (kW/Hp) | 7.5/10 |
| Stirrer Motor (kW/Hp) | 0.75/1 |
| Hydraulic power pack Motor (kW/Hp) | 1.125/1.5 |
| Vacuum pump motor (kW/Hp) | 0.75 / 1 |
| Roll Force (Max.) | 60 Ton By 2 Cylinder |
| Electric Supply | 32.625 kW / 43.5 HP, 3Ø,AC |
| Power Supply | Any One particular option of the following |
| Voltage: 220V / 380V / 415V | |
| Frequency: 50 Hz/ 60 Hz |
